TR5Compact moisture management
for transformer oil — portable & online.
An entry-level, on-line dehydration unit for power transformers under 10 MVA. Single-tank, easily portable, and engineered for continuous moisture and particulate removal without taking the asset off-line.
Built for uptime. Designed for engineers.
Engineered stages working as one continuous protection pipeline for your TR5 unit.
On-line continuous operation
Continuous dehydration with zero transformer downtime.

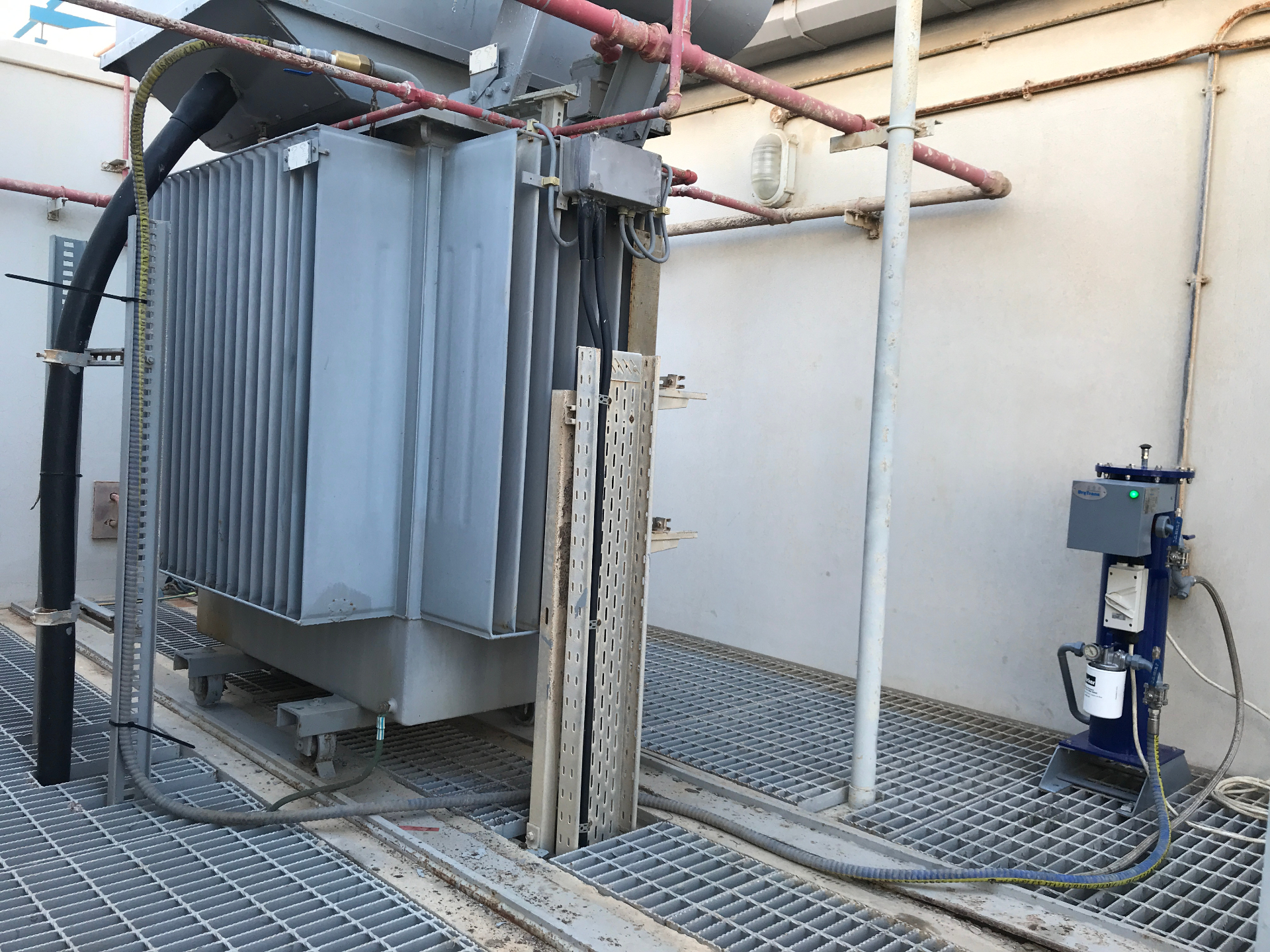

Engineered to be seen.
Where TR5 earns its place.
Hover or tap any scenario — see how TR5 performs across the utility, renewables and industrial worlds.
Generator Step-Up (GSU)
Keep critical GSU insulation dry under heavy thermal cycling.
- Continuous on-load drying
- Resilient to thermal cycling
- Zero outage installation
Do you actually need TR5?
Answer four quick questions about your transformer and we'll give you an instant indication. No data leaves the page.
Your asset profile shows real moisture risk. Continuous on-line dehydration with TR5 will materially extend insulation life.
Every number that matters.
TR5 ships with a complete installation kit and is supported by a one-year factory warranty through our worldwide network of authorized representatives.
- Target transformers
- Up to 10 MVA
- Flow rate
- 300–500 LPH (adjustable)
- Moisture absorption
- 3–5 L
- Media volume
- 10 kg
- Operation
- On-line, continuous

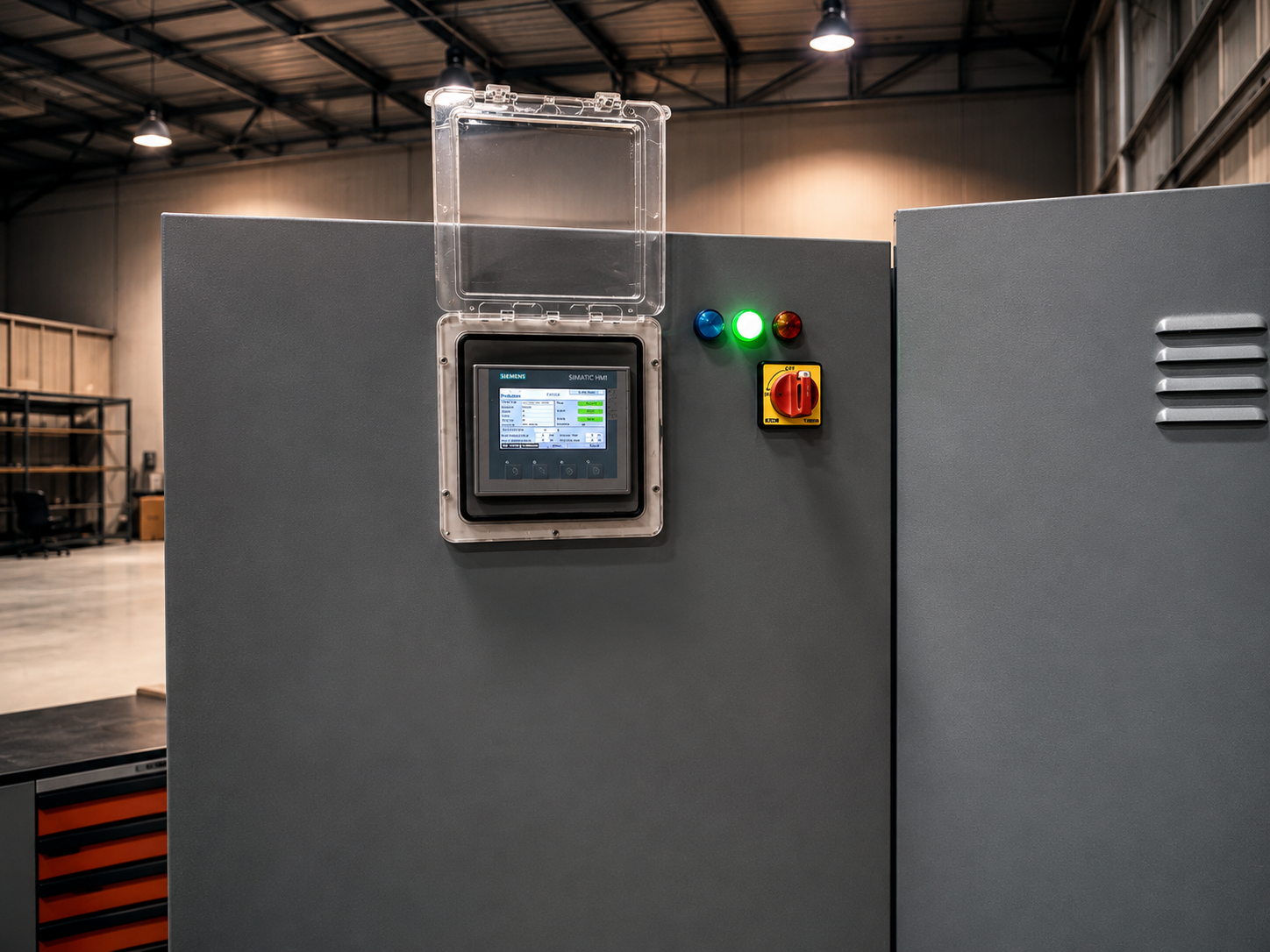

- Enclosure
- Optional rugged outdoor housing
- Maintenance
- Simple filter replacement
- Origin
- Designed in Canada · Built in UAE
Operators running TR5 today
Selected utilities, TSOs and industrial operators deploying TR5 across transmission, generation, and renewables fleets.
Spec TR5 for your next small-MVA asset.
Compact, portable, and online — our engineering team can size and quote a TR5 for any sub-10 MVA transformer in your fleet.
Other DryTrans technologies

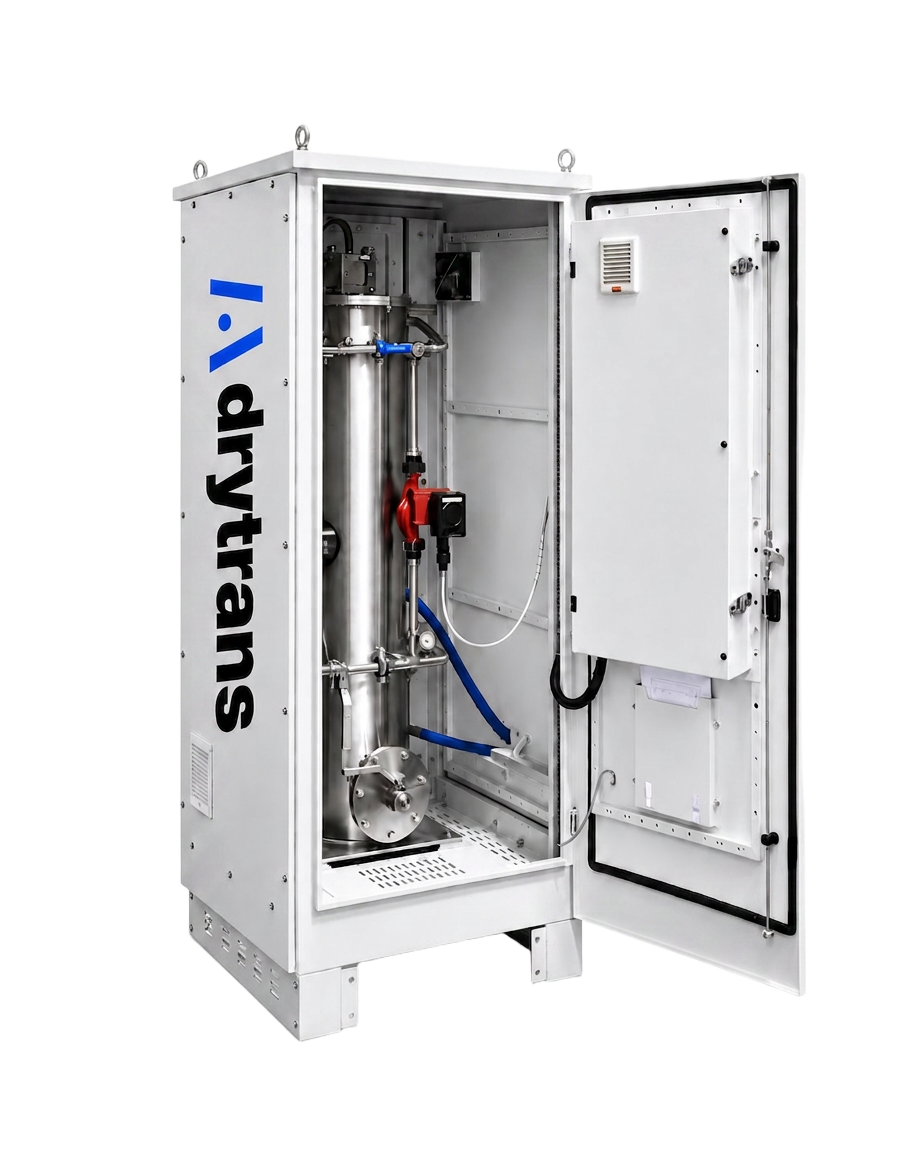

Single-cylinder online dehydration for small to medium power transformers.

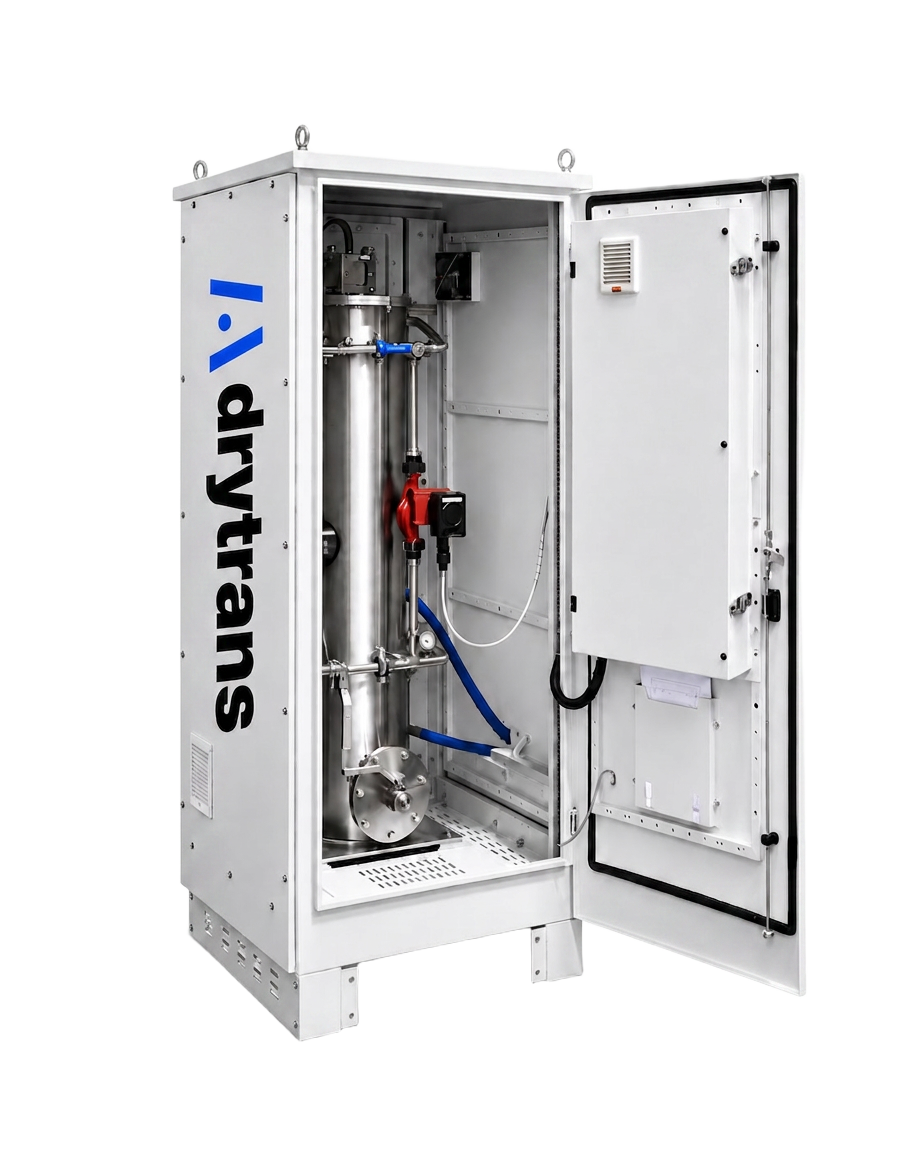

PLC + dual sensors for monitored moisture management.

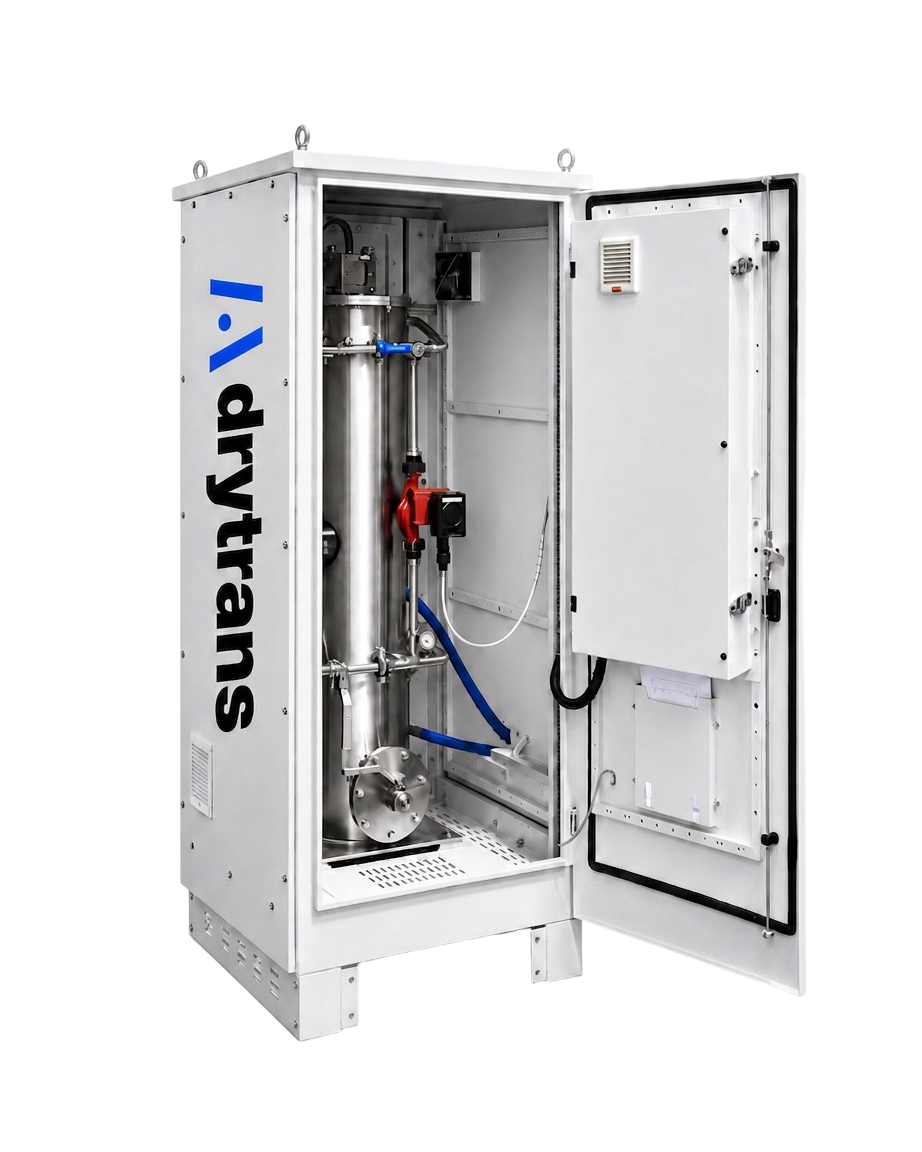

Dual-cylinder protection from water and acidity.

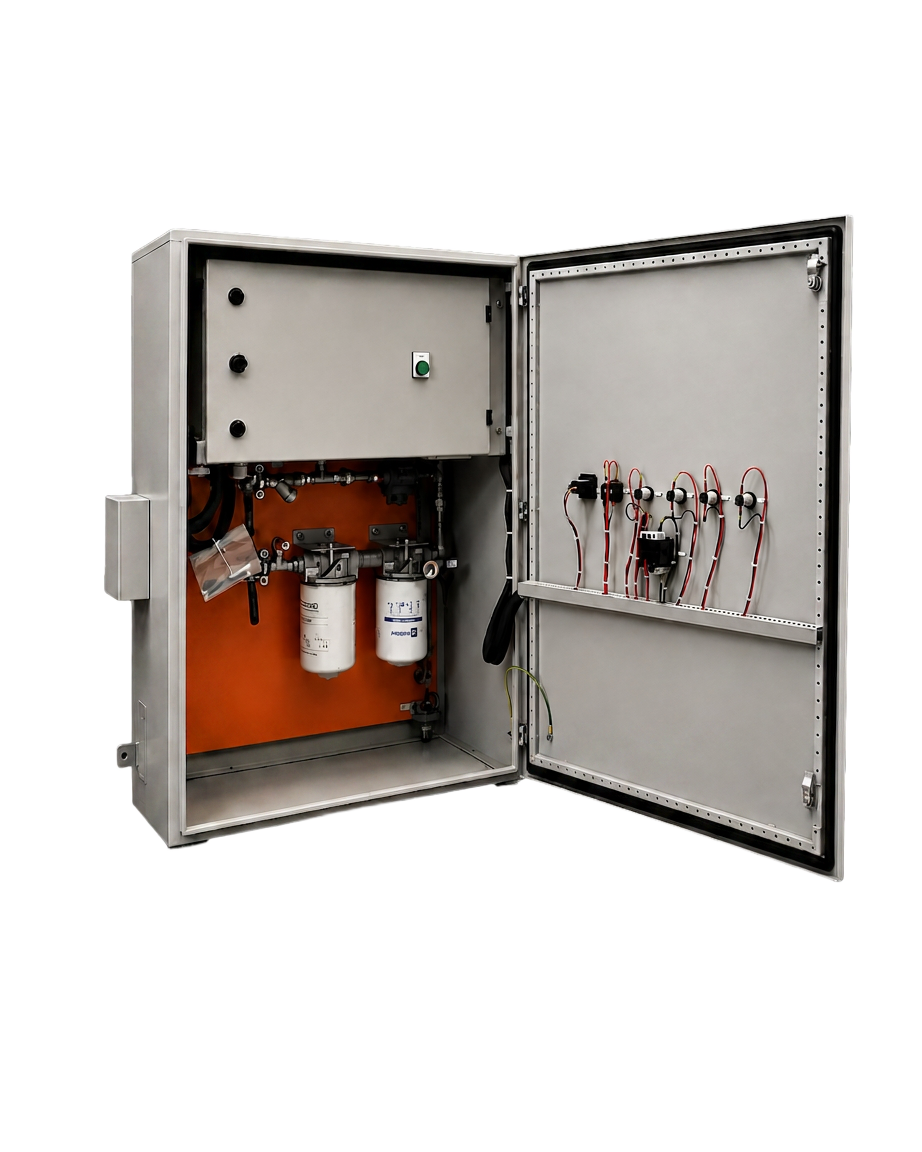

Continuous filtration for on-load tap changers.
